Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rolled Electro Galvanized Woven Wire Screens | Raw Material: | Mild Steel Wire, Aluminum, Stainless Steel |
|---|---|---|---|
| Mesh Type: | Woven Mesh | Wire Diameter: | 0.4-1.6 Mm |
| Roll Height: | 0.9m-1.5m | Mesh/inch: | 2 - 18 |
| Highlight: | vibrating screen mesh,woven wire mesh screen |
||

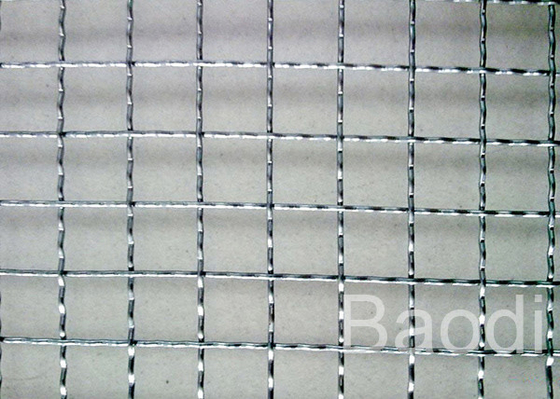

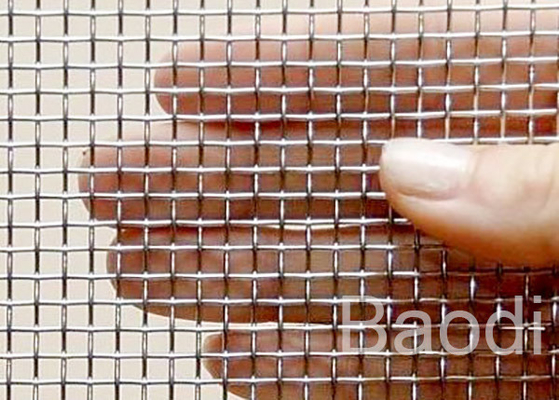

Rolled Electro Galvanized Woven Wire Screens As Screen In Coal Factory
Product Description
1. Material: Low carbon steel wire, aluminum wire, stainless steel wire
2. Mesh: 2mesh - 18mesh
3. Wire Diamter: 0.4-1.6mm
4. Roll Height: 0.9m-1.5m
5. Pattern: Square or rectangular grid
6. Process: Weaving after crimped
7. Surface Treatment: Electro galvanized, hot dip galvanized or powder coated
Crimped Wire Mesh is made by crimped mesh machine, it's available in carbon steel, stainless steel alloys and aluminum alloys.
Manufactured in a wide variety of wire diameters, crimped wire mesh is produced in a square or rectangular mesh.
It's a kind of woven wire cloth. Crimped wire mesh is available in roll or flat panel form.
Weaving Type:
| Type A: Double Crimp Screen |
|
Type B: Single Intermediate Crimp Screen
|
| Type C: Double Intermediate Crimp Screen |
|
Type D: Lock Crimp Screen
|
Feature:
Application Of Woven Wire Screens
| Used as fencing |
| Used as filter |
| As BBQ wire mesh to roast for food or meat |
| As screen in mine, coal factory, construction, etc. |
Specification List Of Woven Wire Screens
| Mesh/ Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
NOTE:
The definition of mesh is the number of openings per linear inch.
The term opening represents the clear opening between two parallel wires.
FAQ:
1. I'm interested in your crimped wire mesh, can i get free sample?
Yes, we could supply samples for free, but customer should pay the express fee.
2. Could you make a special crimped wire mesh for me?
Yes, it can be made as your require.
3. How can i get a competitive price quickly?
The quick quotation depends on the detailed dimensions you supply.
