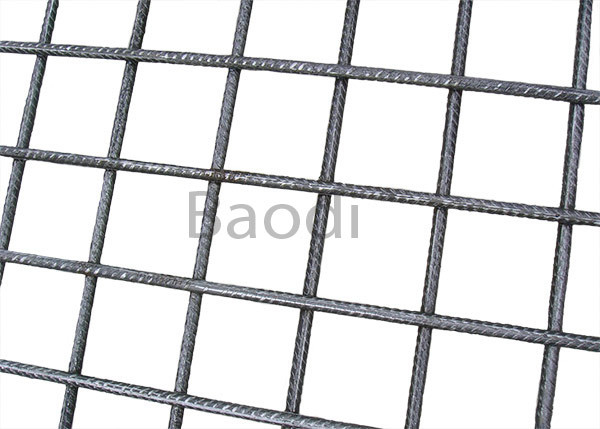

10mm Rebar Reinforcing Wire Mesh High Strength For Roof Construction Material

Name: 10mm Rebar Reinforcing Wire Mesh High Strength For Roof Construction Material
Brand: Baodi
SKU: BD-RWMI
Rating: 5 (119 reviews)

Large Image : 10mm Rebar Reinforcing Wire Mesh High Strength For Roof Construction Material

Product Details:

Place of Origin:	China
Brand Name:	Baodi
Model Number:	BD-RWMI

Payment & Shipping Terms:

Minimum Order Quantity:	100 sheets
Price:	negotiated
Packaging Details:	Null packing or in pallet
Delivery Time:	15-30 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sheets per month

Contact Now

Detailed Product Description

Item Name:	Welded Concrete Reinforcing Mesh	Material:	Reinforcing Steel Bar, Rebar, Deformed Bar
Mesh Opening:	6"	Wire Diameter:	10mm
Pattern:	Square Grid	Maximum Panel Size:	2.4m X 6m
Highlight:	concrete wire panels , concrete reinforcement wire mesh

Welded Concrete Reinforcing Mesh 10mm Rebar As Construction Material

Product Introduction of Welded Concrete Reinforcing Mesh

Reinforcing mesh is made of high strength wires with uniform distribution, which makes concrete structures are being successfully and economically reinforced.

The wire diameter and mesh opening is widely ranged, which makes it possible to provide the exact cross-sectional steel area required.

Reinforcing mesh with small diameter and small spacing provides more uniform stress distribution and more effective controlling the cracks in the floor and wall.

Reinforcing Mesh is custom made by our factory, it is available in various sizes and shapes, the edge could be smooth or rough, the panel could be cutted to the size as your request.

► Feature Of Welded Concrete Reinforcing Mesh

Firm Structure	Wires resist movement
Easy handling	Extensive use
High strength	Square or rectangular grids
Uniform mesh	Savings in time, labour and money

► Application Of Reinforcing Wire Mesh

It is widely use in:

♦ wall

♦ roof

♦ balcony

♦ airport

♦ tunnel

♦ bridge

♦ highway

♦ wharf

♦ construction of building floor

► Specification Detail Of Welded Concrete Reinforcing Mesh

Reference No.	Wire Dia. (mm)		Pitch of wires (mm)		Cross Section Area (mm²)		Mass Per Unit Area Kg/m²
Reference No.	long	Cross	long	cross	long	cross	Mass Per Unit Area Kg/m²
A393	10	10	200	200	393	393	6.16
A252	8	8	200	200	252	252	3.95
A193	7	7	200	200	193	193	3.02
A142	6	6	200	200	142	142	2.22
A98	5	5	200	200	98	98	1.54
B1131	12	8	100	200	1131	252	10.9
B785	10	8	100	200	785	252	8.14
B503	8	8	100	200	503	252	5.93
B385	7	7	100	200	385	193	4.53
B283	6	7	100	200	283	193	3.73
B196	5	7	100	200	196	193	3.05
C785	10	6	100	400	785	70.8	6.72
C636	9	6	100	400	636	70.8	5.55
C503	8	5	100	400	503	49.0	4.34
C385	7	5	100	400	385	49	3.41
C283	6	5	100	400	283	49.0	2.61
DA1328	13	13	100	100	1328	1328	20.85
DA1131	12	12	100	100	1131	1131	17.76
DA950	11	11	100	100	950	950	14.92
DA785	10	10	100	100	785	785	12.32
DA636	9	9	100	100	636	636	9.98
DA503	8	8	100	100	503	503	7.90
DA385	7	7	100	100	385	385	6.04
DA283	6	6	100	100	283	283	4.44
