Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welded Concrete Mesh | Mesh Hole: | Square Mesh |
|---|---|---|---|
| Type: | Welded Mesh | Mesh Opening: | 4" - 8" |
| Wire Diameter: | 4 - 12 Mm | Maximum Panel Size: | 2.4m X 6m |
| Highlight: | concrete wire panels,concrete reinforcement wire mesh |
||
We produce high quality concrete mesh in flat sheets, for construction and pre-cast industries.
Concrete mesh is an efficient, economical and viable option for concrete reinforcement.
Using reinforcing mesh will save time and money over standard rebar methods.

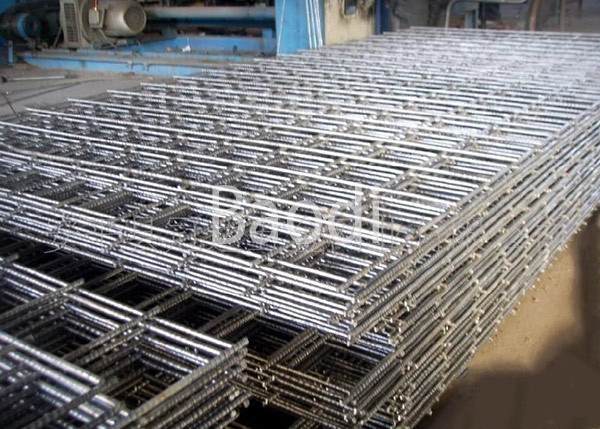

The rebars are welded together to form square or rectangular grids, so that the wires don't move when concrete is placed.
Concrete mesh is one of the more common materials used in the construction of commercial buildings.
It‘s properties make concrete an excellent choice for steel structures, cladding systems and floor slabs on grade.
The Concrete Mesh could be custom made by our factory, it is available in various sizes and shapes, the panel could be cutted to the size as your request.
Feature
It has a strong and firm body, can bear the high pressure from the concrete and exterior.
The Concrete Mesh can save much man-haur, reduce the material cost in the process.
| Firm Structure | Wires resist movement |
| Easy handling | Extensive use |
| High strength | Uniform mesh |
| Savings in time, labour and money | Square or rectangular grids |
| good overall economic efficiency | Reinforced concrete cracking resistance |
It is widely use in:
| Reference No. | Main Wire | Cross Wire | Steel Area | Mass per Unit Area kg/m2 | |||
| Diameter mm | Pitch mm | Diameter mm | Pitch mm | Main mm2 | Cross mm2 | ||
| A63 | 4 | 200 | 4 | 200 | 63 | 63 | 0.99 |
| A98 | 5 | 200 | 5 | 200 | 98 | 98 | 1.54 |
| A142 | 6 | 200 | 6 | 200 | 142 | 142 | 2.22 |
| A193 | 7 | 200 | 7 | 200 | 193 | 193 | 3.02 |
| A252 | 8 | 200 | 8 | 200 | 252 | 252 | 3.95 |
| A318 | 9 | 200 | 9 | 200 | 318 | 318 | 4.99 |
| A393 | 10 | 200 | 10 | 200 | 393 | 393 | 6.16 |
| A475 | 11 | 200 | 11 | 200 | 475 | 475 | 7.46 |
| A565 | 12 | 200 | 12 | 200 | 565 | 565 | 8.88 |
| A664 | 13 | 200 | 13 | 200 | 664 | 664 | 10.42 |
| B196 | 5 | 100 | 7 | 200 | 196 | 193 | 3.05 |
| B283 | 6 | 100 | 7 | 200 | 283 | 193 | 3.73 |
| B385 | 7 | 100 | 7 | 200 | 385 | 193 | 4.53 |
| B503 | 8 | 100 | 8 | 200 | 503 | 252 | 5.93 |
| B636 | 9 | 100 | 8 | 200 | 636 | 252 | 6.97 |
| B785 | 10 | 100 | 8 | 200 | 785 | 252 | 8.14 |
| B950 | 11 | 100 | 8 | 200 | 950 | 252 | 9.44 |
| B1131 | 12 | 100 | 8 | 200 | 1131 | 252 | 10.86 |
| B1328 | 13 | 100 | 8 | 200 | 1328 | 252 | 12.40 |
| DA126 | 4 | 100 | 4 | 100 | 126 | 126 | 1.97 |
| DA196 | 5 | 100 | 5 | 100 | 196 | 196 | 3.08 |
| DA283 | 6 | 100 | 6 | 100 | 283 | 283 | 4.44 |
| DA385 | 7 | 100 | 7 | 100 | 385 | 385 | 6.04 |
| DA503 | 8 | 100 | 8 | 100 | 503 | 503 | 7.90 |
| DA636 | 9 | 100 | 9 | 100 | 636 | 636 | 9.98 |
| DA785 | 10 | 100 | 10 | 100 | 785 | 785 | 12.32 |
| DA950 | 11 | 100 | 11 | 100 | 950 | 950 | 14.92 |
| DA1131 | 12 | 100 | 12 | 100 | 1131 | 1131 | 17.76 |
| DA1328 | 13 | 100 | 13 | 100 | 1328 | 1328 | 20.85 |

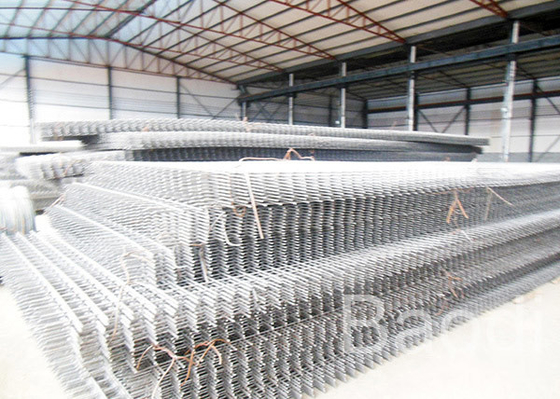

Packing: on pallet or null packing
Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding→ Packing → Loading
Welding:
Welded wire steel fabric is manufactured with automatic welding machines, where wires are welded together in square or rectangular grids.
