Product Details:
Payment & Shipping Terms:
|
| Product: | Reinforcement Welded Mesh Sheets | Grid Shape: | Square Or Rectangular Mesh |
|---|---|---|---|
| Mesh Type: | Welded Mesh | Opening: | 100 - 300 Mm |
| Wire Diameter: | 4 - 12 Mm | Maximum Panel Size: | 2.4m X 6m |
| Highlight: | concrete reinforcement wire mesh,steel reinforcing mesh |
||

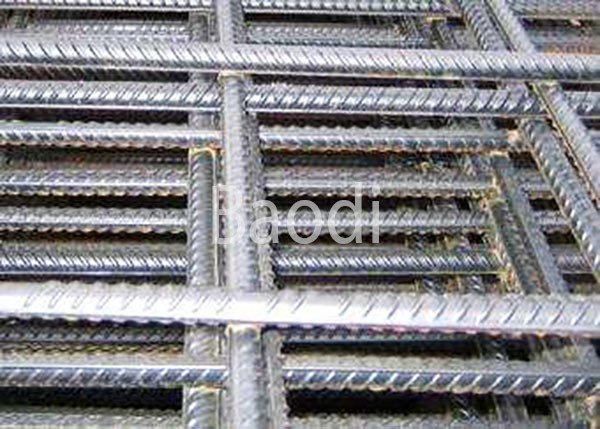

Reinforcing mesh is a welded wire fabric, with rectangular or square grid pattern.
The fabric is used to provide tensile strength and crack control to structural concrete elements.
Reinforcing mesh has a variety of uses for specific applications such as roads, house, foundations, floor, slabs as well as commercial and industrial applications.
Concrete mesh is one of the more common materials used in the construction of commercial buildings.
We can supply reinforcing mesh in a range of sizes and shapes including: Square Mesh, Structural Mesh, Long Mesh and D49 Wrapping Mesh.
The reinforcing mesh could be custom made by our factory, it is available in various sizes and shapes, the panel could be cutted to the size as your request.
Characteristic Of Reinforcement Welded Mesh
It has a strong and firm body, can bear the high pressure from the concrete and exterior.
The reinforcing mesh can save much man-haur, reduce the material cost in the process.
Quick Detail
| Raw Material | Rebar, Deformed Bar, Ribbed Bar, Thread Bar | Type | Welded Mesh |
| Edge | Smooth edge or rough edge | Wire Diameter | 4 - 12mm |
| Mesh Size | 100 - 300mm | Panel Width | 0.5m - 2.4m |
| Panel Length | 1 - 6m | Packing | On pallet or null packing |
It is widely use in airport, tunnel, bridge, highway and wharf, also in the construction of building floor, wall, roof and balcony.
Specification List
| Mesh Opening | Wire Diamter | ||
|
Pitch of Main Wire mm |
Pitch of Cross Wire mm |
Main Wire Diamter mm |
Cross Wire Diameter mm |
| 200 | 200 | 10 | 10 |
| 200 | 200 | 8 | 8 |
| 200 | 200 | 7 | 7 |
| 200 | 200 | 6 | 6 |
| 100 | 200 | 12 | 8 |
| 100 | 200 | 10 | 8 |
| 100 | 200 | 8 | 8 |
| 100 | 200 | 7 | 7 |
| 100 | 200 | 6 | 7 |
| 100 | 200 | 5 | 7 |
| 100 | 400 | 10 | 6 |
| 100 | 400 | 9 | 6 |
| 100 | 400 | 8 | 6 |
| 100 | 400 | 7 | 6 |
| 100 | 400 | 6 | 6 |
| 100 | 100 | 2.5 | 2.5 |

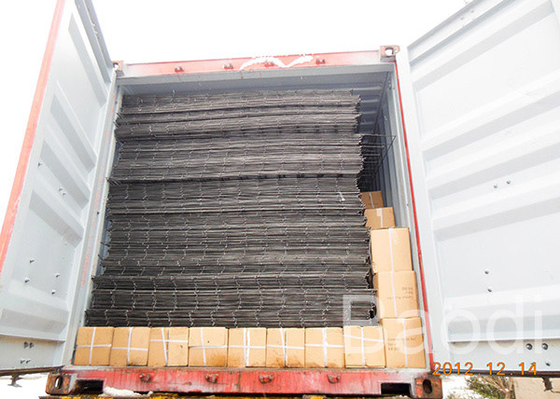

Packing: on pallet or null packing
Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding→ Packing → Loading
Welding:
Welded wire steel fabric is manufactured with automatic welding machines, where wires are welded together in square or rectangular grids.
