Anping County Baodi Metal Mesh Co.,Ltd.
Be your good wire mesh supplier & OEM.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Name: | Crimped Wire Woven Mesh | Application: | Used For Mine, Filter, Construction |
|---|---|---|---|
| Surface Treatment: | Electro Galvanized | Wire: | 0.4mm - 1.6 Mm |
| Roll Height: | 0.9m - 1.5m | Mesh Per Inch: | 2 - 18 |
| Highlight: | woven steel mesh,vibrating screen mesh |
||

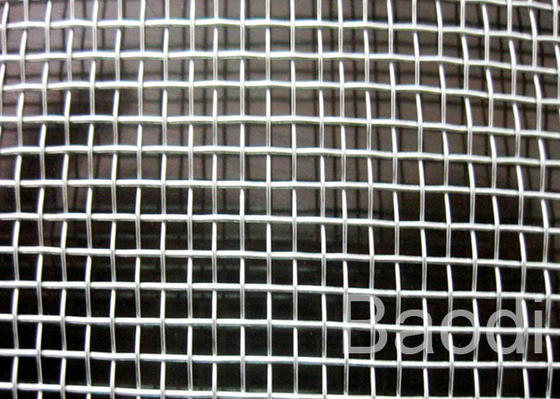

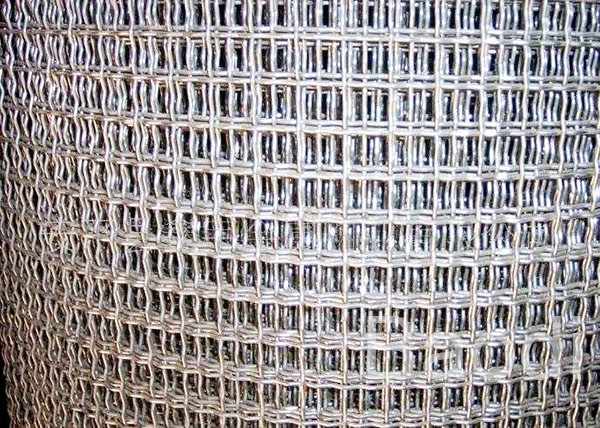

Crimped Wire Woven Mesh Electric Galvanized Mesh In Roll For Mine
|
>> Crimped Mesh is made by crimped mesh machine, it's available in carbon steel, stainless steel alloys and aluminum alloys. |
|
>> Manufactured in a wide variety of wire diameters, crimped wire mesh is produced in a square or rectangular mesh. |
|
>> it's a kind of woven wire cloth. Crimped wire mesh is available in roll or flat panel form.
|
>> It is used as fence or filter in lost of industries. It's also used as screen in mine, coal factory, construction and other industries.
>> Or used as BBQ wire mesh to roast for food or meat.
| Crimped Wire Mesh | |||
| Material | Low carbon steel wire | Pattern | Square or rectangular grid |
| Mesh/inch | 2mesh - 18mesh | Wire Diamter | 0.4-1.6mm |
| Roll Height | 0.9m-1.5m | Process | Weaving after crimped |
Weaving Type:
| Type A: Double Crimp Screen |
Type B: Single Intermediate Crimp Screen |
|
Type C: Double Intermediate Crimp Screen
|
Type D: Lock Crimp Screen |
Specification List
| Crimped Wire Mesh | ||
| Mesh/ Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
NOTE:
The definition of mesh is the number of openings per linear inch.
The term opening represents the clear opening between two parallel wires.
FAQ:
|
1. I'm interested in your crimped wire mesh, can i get free sample?
Yes, we could supply samples for free, but customer should pay the express fee. |
|
2. Could you make a special crimped wire mesh for me?
Yes, it can be made as your require. |
|
3. How can i get a competitive price quickly? The quick quotation depends on the detailed dimensions you supply. |
Our Service
1.The most professional production and sale team,we can give you the most professional advice on the products.
2.Customs design is available.
3.Small piece of sample is for free charge, but we don't pay the express fee.
4.All the questions will be replied in 24 hours.
