Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence

Large Image : Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence

Product Details:

Place of Origin:	China
Brand Name:	Baodi
Model Number:	BD-WMFAA

Payment & Shipping Terms:

Minimum Order Quantity:	100 panels with post
Price:	negotiated
Packaging Details:	In wooden crate or pallet
Delivery Time:	15-40 days
Payment Terms:	T/T
Supply Ability:	2000 panels per month

Contact Now

Detailed Product Description

Name:	Wire Mesh Fence	Surface:	Galvanized + PVC Coated
Mesh Type:	Welded Mesh	Usage:	Outdoor Fence
Mesh Aperture:	2" - 7.9"	Height:	Maximum 7.9'
Highlight:	mesh panel fence , weld wire fence

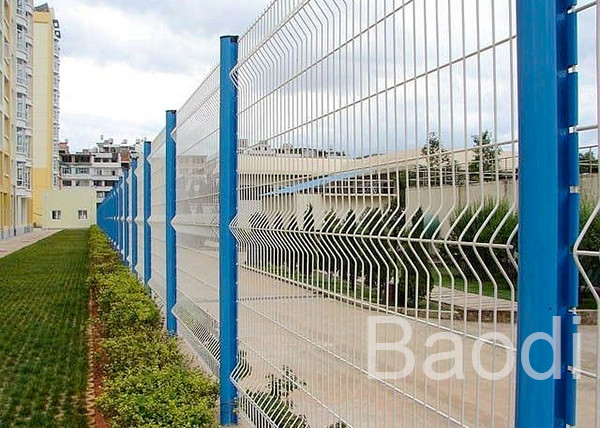

Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence

Product Description

Wire Mesh Fence is a kind of welded mesh used for fencing, each fence panel comes with a post and accessories.

It’s a semi-opaque fence due to the open weave, not obscure sunlight from either side of the fence.

Material: low carbon iron wire.

Surface: Galvanized, then PVC coated or powder coating. So the wire mesh fence is thoroughly sealed and protected against rust and corrosion.

Color: Green, blue, white, yellow, etc.

There're 'V' shaped design on the fence panel. The ' V ' shaped design increases stability to the panel including panels, mesh gates and accessories.

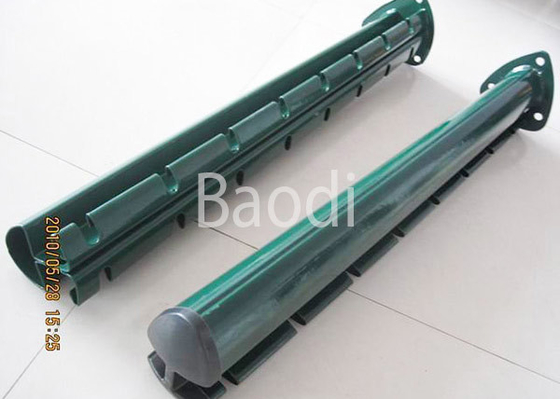

Different Types of Post:

Type 1: Round post

Type 2: Square post

Type 3: Peach post

Post Shape	Post Dimension
Square Post	50x70mm, 70x100mm, 50x50mm, 60x60mm
Round Post	32mm, 36mm, 38mm, 40mm, 42mm, 48mm
Peach Post	50x70mm, 70x100mm

Feature

It has the feature of simple structure, nice appearance, wide view and easily installation.
Quick Detail:

Panel Height	Panel Length	Wire Diameter	Mesh Opening	Folds
1.03m	2.0m / 2.5m	Galvanized + Powder Painted 3.85mm/4.0mm 4.85mm/5.0mm Galvanized + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm	50 × 200mm 55 × 200mm 50 × 150mm 55 × 100mm	2
1.23m				2
1.5m				3
1.53m				3
1.7m				3
1.73m				3
1.8m				4
1.93m				4
2.0m				4
2.03m				4
2.4m				4

Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
