Anping County Baodi Metal Mesh Co.,Ltd.
Be your good wire mesh supplier & OEM.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Item: | Galvanised Weld Mesh Rolls | Roll Height: | 0.915m / 3ft |
|---|---|---|---|
| Roll Length: | 30m / 100ft | Aperture: | 6mm X 6mm (1/4" X 1/4") |
| Surface: | Electro Galvanised Or Hot Dipped Galvanised | OEM: | YES |
| Highlight: | welded metal mesh,welded wire screen |
||

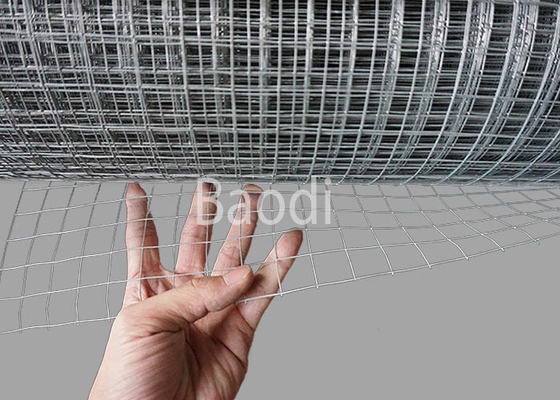

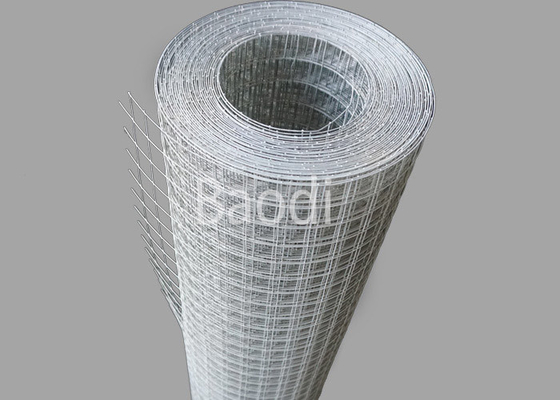

Galvanised Weld Mesh Rolls 0.915m x 30 m Aperture 6 mm x 6 mm
| Item | Galvanised weld mesh | Model | GWM3FT6MM |
| Roll size | 3ft x 30m | Aperture size | 6 x 6 mm |
| Wire Guage | 22 # | Wire Diameter | 0.7 mm |
| Surface | Electro Galvanised | Packing | Plastic film or water-proof paper |
| MOQ | 100 rolls | OEM | YES |
Introduction:
Welded wire mesh is a prefabricated joined grid, formed by a series of a series of parallel longitudinal wires.
It’s made of high quality low carbon iron wire or stainless steel wire, with accurate spacing welded to cross wires at the required spacing.
It’s available in various sizes, the aperture size ranges from 1/4” to 2”, and the wire gauge ranges from 12 gauge BWG to 24 gauge BWG.
The roll length is usually 30m as standard roll length. And the roll height could range from 0.5m to 1.8m.
It’s widely used for pet cages, building material or for filter use.
For weld mesh, the surface could be electro galvanized ,hot dipped galvanized or PVC coating (color green is accepted).
Feature:
Strong consistent welds
Uniform mesh and smooth surface
Wires resist movement
Flush edge
Good corrosion resistance
We can make custom size, the weld mesh is available in rolls or cutted in pieces as customer’s request.
