Product Details:
Payment & Shipping Terms:
|
| Item Name: | Round Hole Tube Metal Mesh | Raw Material: | Carbon Steel |
|---|---|---|---|
| Hole Type: | Round Hole | Application: | Mining, Ceiling, Filter |
| Surface Treatment: | Powder Coated | Process Service: | Bending / Cutting / Punching |
| Hole Diameter: | 0.8mm - 25mm | Sheet Thickness: | 0.5-3.5mm |
| Width X Length: | 1m X 2m Usually | ||
| Highlight: | 3.5mm Perforated Metal Tube,3.5mm Perforated Round Steel Tubing,CS Powder Coated Perforated Metal Tube |
||

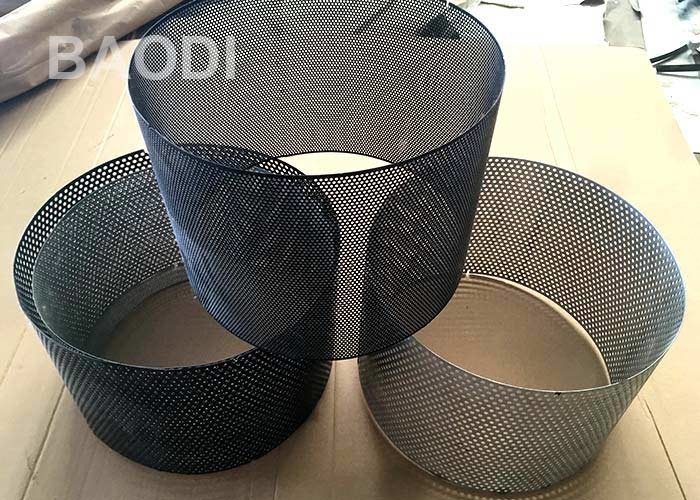

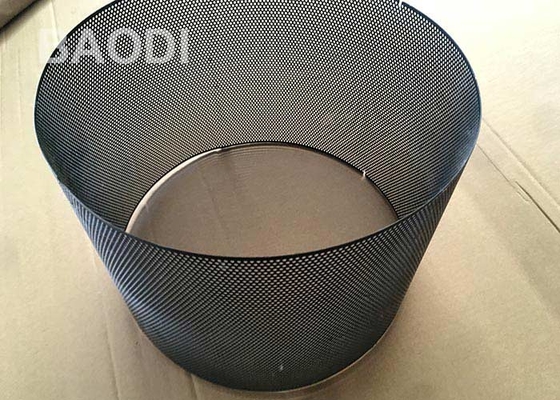

Powder Coated Round Hole Steel Tube Perforated Metal Mesh
Product Description
Perforated Metal Mesh, also known as CNC punching net, is a metal net product formed by stamping metal plates according to molds with a certain spacing.
Material: It's made of stainless steel, aluminum plate, hot and cold steel plate, copper plate, PVC plate film and other materials.
Characteristics: the mesh surface is flat, smooth, beautiful, firm and durable.
Uses: various special-shaped orifice nets are used in food machinery, drying sieve plate, decoration ceiling, instrument box shell, sound horn, filtering sound absorption and other equipment. Light concave convex round hole net is used for platforms, pedals, filters and various filter valves.
| Material | Thickness (mm ) | Hole Size (mm) | Hole Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Weight (kg/m2) |
| Carbon steel | 0.5 | 1 | 1mm | 1m | 2m | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2mm | 1m | 2m | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8mm | 1m | 2m | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5mm | 1m | 2m | 19.6 | 5 | |
| 0.8 | 2 | 3.4mm | 1m | 2m | 30.78 | 4.465 | |
| 1.5 | 2 | 2mm | 1m | 2m | 19.6 | 9.4 | |
| 1.5 | 5 | 8.0mm | 1m | 2m | 35.39 | 7.843 | |
| 3 | 5 | 16mm | 1m | 2m | 19.6 | 18.8 | |
| Stainless steel | 0.5 | 1 | 1mm | 1m | 2m | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5mm | 1m | 2m | 19.6 | 5 | |
| 1 | 2 | 2mm | 1m | 2mm | 19.6 | 6.28 | |
| 2 | 5 | 16mm | 1m | 2m | 19.6 | 6.28 | |
| Aluminum | 0.5 | 1 | 1mm | 1m | 2m | 19.6 | 1.08 |
| 0.8 | 3 | 3mm | 1m | 2m | 19.6 | 1.72 | |
| 1.6 | 2 | 2mm | 1m | 2m | 19.6 | 3.24 | |
| 3 | 4 | 16mm | 1m | 2m | 19.6 | 4.23 |
Variety Hole Pattern Display:
