Anping County Baodi Metal Mesh Co.,Ltd.
Be your good wire mesh supplier & OEM.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Model Name: | Square Crimped Wire Mesh | Wire Material: | Galvanized Iron Wire |
|---|---|---|---|
| Type: | Woven Mesh | OEM: | YES |
| Roll Height: | 1m Or 1.5m | Mesh Shape: | Square Mesh Opening |
| Highlight: | mine safety net crimped mesh,square hole crimped mesh,crimped mesh 1m height |
||

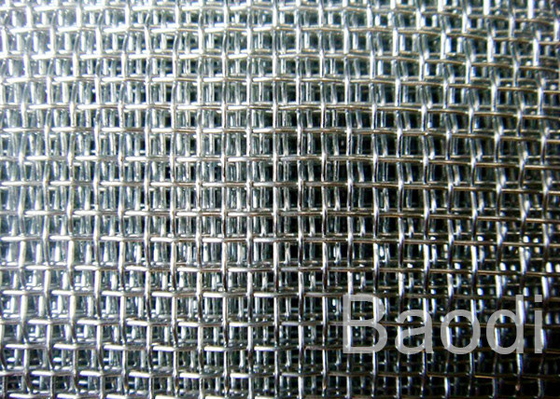

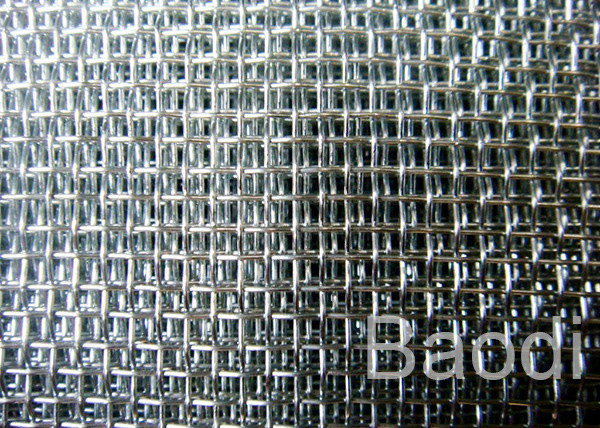

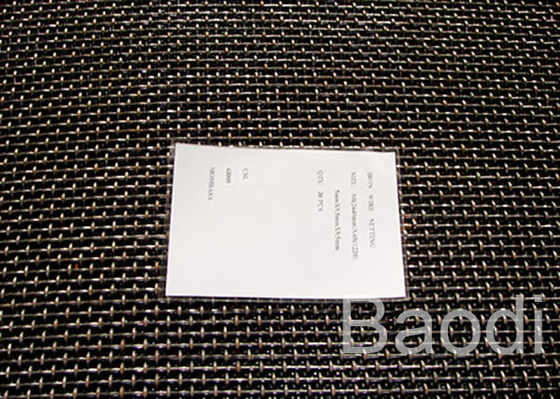

Square Mesh Hole Mine Safety Net Crimped Wire Mesh
Product Description
| Material | Low carbon iron, aluminum , stainless steel wire | Pattern | Square or rectangular hole |
| Surface | Galvanized or powder coated | OEM | Yes |
| Packing | Packed in roll or sheet | Sample | Sample for free, customer pay the express fee |
| MOQ | 50 rolls or 100 sheets | Special Requirement | Can be customized |
| Weave Type | Feature | |
| Double Crimp Screen | firm structure | Accurate & uniform apertures |
| Single Intermediate Crimp Screen | good strength | economy cost |
| Double Intermediate Crimp Screen | High temperature resisting | acid resisting |
| Lock Crimp Screen | alkali resisting | corrosion resisting |
| Mesh/ Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
NOTE:
The definition of mesh is the number of openings per linear inch.
The term opening represents the clear opening between two parallel wires.
