| Product Name: | 8 Ft Wire Mesh Security Fencing Welded Iron Pvc Coated Square Grid | Material: | Low Carbon Steel Wire |
|---|---|---|---|
| Surface: | Galvanized, Then PVC Coated | Different Post: | Peach Post, Round Post, Square Post |
| Wire Diameter: | 3-6mm | Mesh Size: | 50-200mm |
| Highlight: | 8 ft wire mesh security fencing,square iron wire mesh security fencing,welded 8 ft wire mesh fence |
||

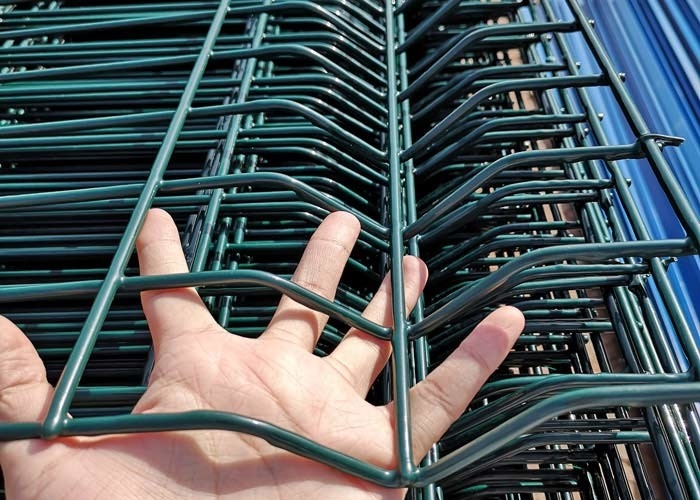

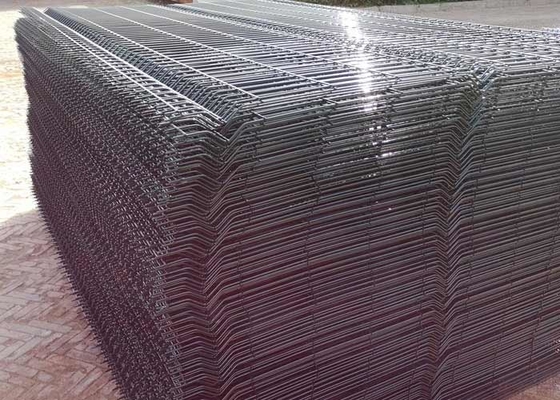

Welded Iron Wire PVC Coated Wire Mesh Fence Square Grid
The wire mesh fence has the advantages of beauty, durability, no deformation and fast installation.
It is an ideal metal guardrail product. It can not only make a long-term mesh wall, but also be used as a temporary isolation net.
It can be realized by using different column fixing methods. It has the characteristics of rust prevention and weather resistance.
The treatment forms can be electroplating, hot plating, plastic spraying and plastic dipping.
Characteristics: the grid structure is simple, convenient for transportation, and the installation is not limited by the topographic relief, especially for mountainous areas, slopes and multi bend areas.
The product is firm and durable, the price is medium and low, and is suitable for large area use.
Surface treatment method:
Economy: cold galvanized, white; Plastic spraying, color options: green, white, red, black, yellow and so on.
Commonly used: dip molding, color options: grass green, dark green, white, yellow, black, red and so on.
Treatment method with better anti-corrosion performance: hot dip galvanizing and plastic dipping treatment are adopted, and the anti-corrosion performance is permanent.
The wire mesh fence can be custom made by our factory, each fence panel comes with a post and accessories .
Feature:
Quick Detail:
|
Specification of wire mesh fence |
|||
|
Mesh Size (mm) |
50x100, 50x150, 50x200,55x100,55x200 |
||
|
Panel Size (m) |
2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, 2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43 |
||
|
Post Size (mm) |
50x70, 70x100, 50x50, 60x60, (square hole) φ32,36,38,40,42,48(round post diameter) |
||
|
Wire Diameter (mm) |
3-6mm as customer’s request |
||
|
Surface Color |
Green, blue, black, white, yellow,etc. |
||
|
Post Type |
Peach post, square. Holland, T-type, Y-type post |
||
|
Modular fencing system |
Panel size (L*H) mm |
Post height mm |
Number of bending folds |
|
2405*1270 |
1500 |
2 |
|
|
2405*1570 |
1850 |
2 |
|
|
2405*1720 |
2130 |
2 |
|
|
2405*2000 |
2450 |
3 |
|
Surface Treatment could be Galvanized or PVC coated.
NOTE: There’re common specifications of products. Non-standard can also be customized as customer's request.
| Post Type | Post Size |
| Square Post | 50x70mm, 70x100mm, 50x50mm, 60x60mm |
| Round Post | 32mm, 36mm, 38mm, 40mm, 42mm, 48mm |
| Peach Post | 50x70mm, 70x100mm |
Production Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
