Product Details:
Payment & Shipping Terms:
|
| Features: | Durable,Structure Firm,Acid Resistant | Name: | Crimped Wire Mesh |
|---|---|---|---|
| Weave Type: | Plain Weave,Dutch Weave | Wire Materiall: | Mild Steel, Iron Wire |
| Technique: | Woven,Weave | Hole Shape: | Square Mesh Holes |
| Mesh Type: | Woven Mesh | Wire: | 0.4mm - 1.6 Mm |
| Width: | 0.9m - 1.5m | Mesh Size: | 2 Inch - 18 Inch |
| Highlight: | 0.9m width crimped wire screen,dutch weave crimped wire screen,dutch weave crimped mesh |
||

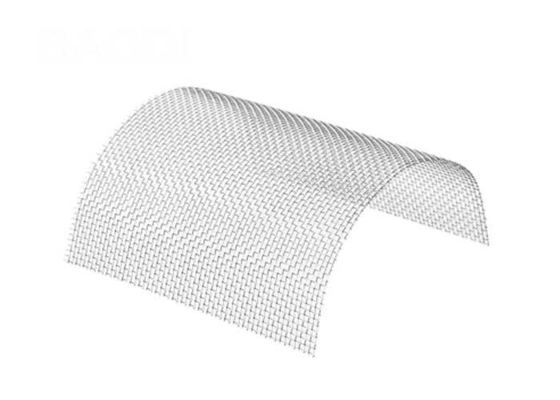

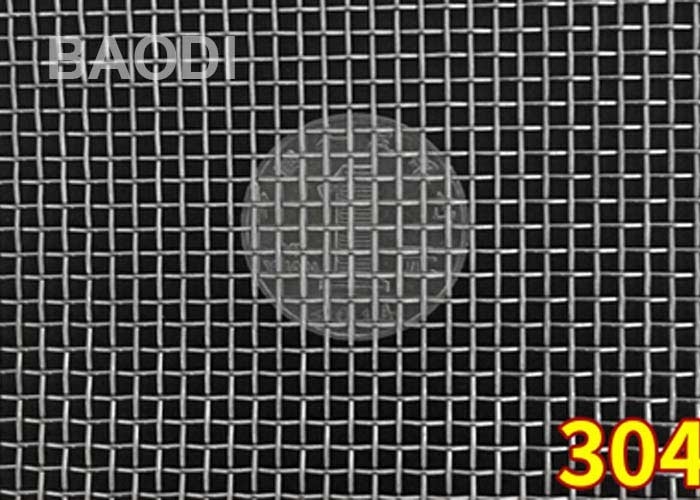

Crimped wire mesh is a kind of woven net with square mesh holes.
It has the characteristics of diversified materials, wide applications, smooth and stable structure and durability.
| Item Name | Crimped Wire Mesh |
| Wire Material | Mild stee, stainless stee, aluminum wire |
| Mesh size | range from 2" to 18" |
| Wire diameter | range from 0.4mm to 1.6mm |
| Weave type | plain weave |
| Application | Industry, construction decoration, filter |
It's widely used in mining, chemical, food, petroleum, medicine, machinery and other industries.
| Crimped Wire Mesh | ||
| Mesh Opening / Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
NOTE:
The definition of mesh is the number of openings per linear inch.
The term opening represents the clear opening between two parallel wires.
