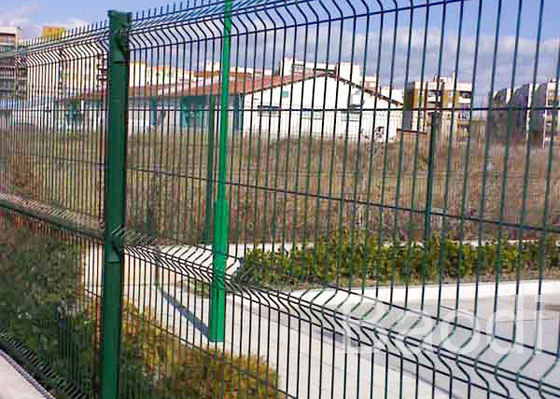

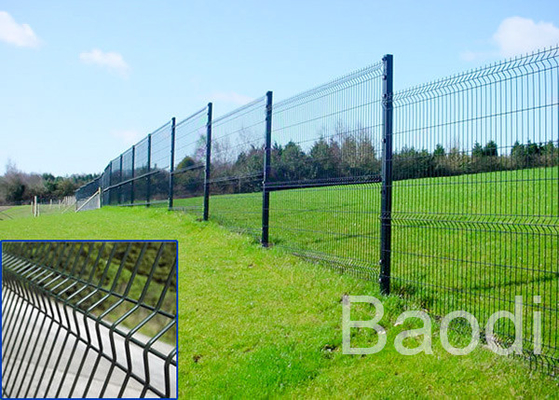

PVC Coating After Galvanized Wire Mesh Fence V Shaped Design For Highway Fencing
♦ The PVC Coating After Galvanized Wire Mesh Fence is welded with high quality low carbon steel wire, surface treated by vinyl clad over galvanized materials.
♦ It can resist the corrosive and ultraviolet very strongly, each fencing panels comes with a single post, hence an extra end post is required to finish a run.
► The wire mesh fence is custom made by our factory, each fence panel comes with a post and accessories.
♦ The post type could be round post, square post or peach post. Usage:
Custom Vinyl Clad Wire Mesh Fence is widely used in :
|
Road and Transit ( Highway, Railway, Road, City Transit ) |
|
Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm ) |
|
Private grounds ( Courtyard, Villa ) |
|
Public grounds ( Park, Zoo, Train or Bus Station, Lawn ) |
|
Commercial grounds ( Corporation, Hotel, Supermarket ) |
Feature:
1. Simple structure
2. Beautiful appearance
3. High strength
4. Strong and reliable security
5. Wide view and easily installation.
6. It’s a semi-opaque fence due to the open weave
7. It not obscure sunlight from either side of the fence
8. Thoroughly sealed and protected against rust and corrosion Specification List:
Post Shape:
1. Square Post ► 50x70mm, 70x100mm, 50x50mm, 60x60mm
2. Round Post ► 32mm, 36mm, 38mm, 40mm, 42mm, 48mm
3. Peach Post ► 50x70mm, 70x100mm
| Panel Height | Panel Length | Wire Diameter | Mesh Opening | Folds |
| 1.03m | 2.0m / 2.5m |
Galvanized + Powder Painted 3.85mm/4.0mm 4.85mm/5.0mm Galvanized + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm |
50 × 200mm 55 × 200mm 50 × 150mm 55 × 100mm | 2 |
| 1.23m | 2 | |||
| 1.5m | 3 | |||
| 1.53m | 3 | |||
| 1.7m | 3 | |||
| 1.73m | 3 | |||
| 1.8m | 4 | |||
| 1.93m | 4 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.4m | 4 |
Production Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
FAQ: 1. I'm interested in your product, is custom size available? Yes, our factory is professional in producing kinds of wire mesh, the product could be customized as your request .
2. The quantity is not that big, is that OK? Yes, you can send us message with the real quantity, we'll try our best to make this order for you. We'd like to make good relationship with more customers.
3. Can I get free samples? Yes, we'd like to provide small pieces free samples, and customers pay for the express fee.
4. Can you provide OEM service? Yes, all the products can be made as your require.
5. How can i get a competitive price quickly?
The quick quotation depends on the detailed dimensions you supply.
