| Product Name: | Customizable Welded Mild Steel Wire Mesh Fence | Surface Treatment: | Powder Spraying |
|---|---|---|---|
| Material: | Low Carbon Steel | Post Shape: | Peach Post, Round Post, Square Post |
| Wire Diameter: | 3-6mm | Aperture: | 50-200mm |
| Highlight: | mesh panel fence,weld wire fence |
||
Customizable Welded Mild Steel Wire Mesh Fence Powder Spraying After Galvanized
|
Product Description |
|
The Customizable Welded Mild Steel Wire Mesh Fence is welded with high quality low carbon steel wire, surface treated by electrostatic powder spray coating over galvanized materials. |
|

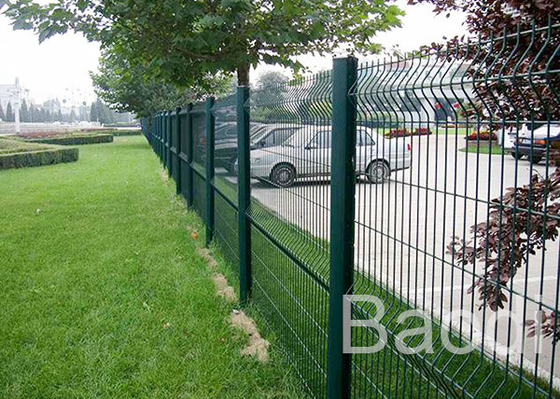

It's used as Boundary and Security Fence in airport , highway , stadium , etc. |
|

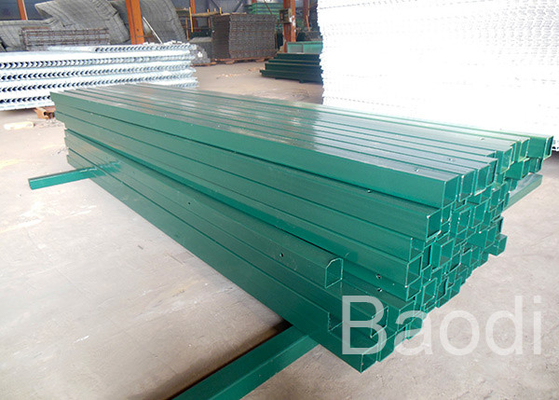

The post type could be round post, square post or peach post.
|
|
It can resist the corrosive and ultraviolet very strongly, each fencing panels comes with a single post, hence an extra end post is required to finish a run. |
The wire mesh fence is custom made by our factory, each fence panel comes with a post and accessories .
Feature
Usage of wire mesh fence Wire Mesh Fence is used for:
|
Road and Transit ( Highway, Railway, Road, City Transit ) |
|
Public grounds ( Park, Zoo, Train or Bus Station, Lawn ) |
|
Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm ) |
|
Private grounds ( Courtyard, Villa ) |
|
Commercial grounds ( Corporation, Hotel, Supermarket ) |
Quick Detail
| Post Type | Post Size |
| Square Post | 50x70mm, 70x100mm, 50x50mm, 60x60mm |
| Round Post | 32mm, 36mm, 38mm, 40mm, 42mm, 48mm |
| Peach Post | 50x70mm, 70x100mm |
|
Specification of wire mesh fence |
|||
|
Mesh Opening |
50x100, 50x150, 50x200,55x100,55x200 |
mm |
|
|
Panel Size |
2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, 2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43 |
m(L x H) |
|
|
Post Size |
50x70, 70x100, 50x50, 60x60, (square hole) φ32,36,38,40,42,48(round post diameter) |
mm |
|
|
Wire Diameter |
3-6mm as customer’s request |
mm |
|
|
Surface Color |
Green, blue, black, white, yellow,etc. |
||
|
Post Type |
Peach post, square. Holland, T-type, Y-type post |
||
|
Modular fencing system |
Panel size (L*H) mm |
Post height mm |
Number of bending folds |
|
2405*1270 |
1500 |
2 |
|
|
2405*1570 |
1850 |
2 |
|
|
2405*1720 |
2130 |
2 |
|
|
2405*2000 |
2450 |
3 |
|
Surface Treatment could be Galvanized or PVC coated.
NOTE: There’re common specifications of products. Non-standard can also be customized as customer's request.
Production Process Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
FAQ
|
1. I'm interested in your product, is custom size available? Yes, our factory is professional in producing kinds of wire mesh, the product could be customized as your request. |
|
2. The quantity is not that big, is that OK? Yes, you can send us message with the real quantity, we'll try our best to make this order for you. We'd like to make good relationship with more customers. |
|
3. Can I get free samples? Yes, we'd like to provide small pieces free samples, and customers pay for the express fee. |
|
4. Can you provide OEM service? Yes, all the products can be made as your require. |
