| Product Name: | Plastic Wire Fence | Surface Treatment: | Plastic Coating |
|---|---|---|---|
| Post Type: | Peach Post, Round Post, Square Post | Wire Diameter: | 3-6mm |
| Aperture: | 50-200mm | Panel Height: | Maximum 2.4m |
| Highlight: | wire net fencing,mesh panel fence |
||

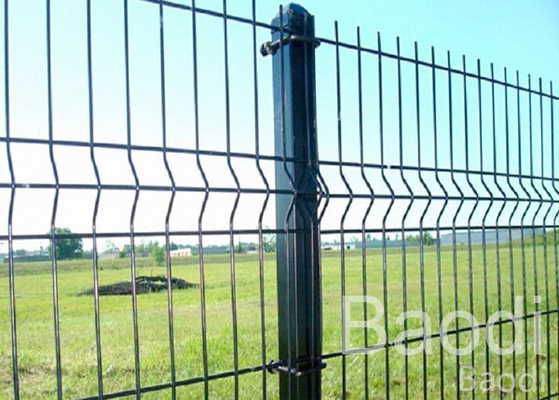

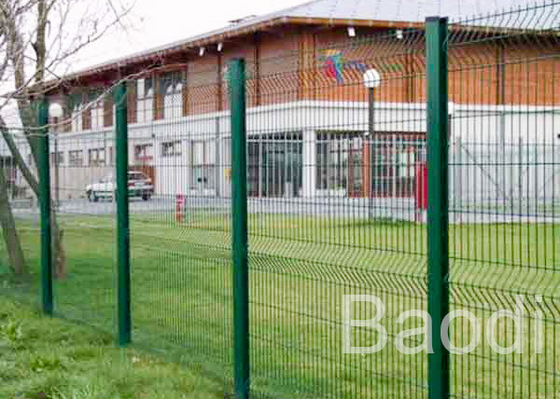

Plastic Wire Fence Curved Welded Mesh Panel For Industry Zone Fencing
1. The Plastic Wire Fence is welded with high quality low carbon steel wire, surface treated by vinyl clad over galvanized materials.
2. It can resist the corrosive and ultraviolet very strongly, each fencing panels comes with a single post, hence an extra end post is required to finish a run.
3. It's used as Boundary and Security Fence in airport , highway , stadium , etc.
Note:
Usage
Plastic Wire Fence is widely used in:
|
Commercial grounds ( Corporation, Hotel, Supermarket ) |
|
Road and Transit ( Highway, Railway, Road, City Transit ) |
|
Private grounds ( Courtyard, Villa ) |
|
Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm ) |
|
Public grounds ( Park, Zoo, Train or Bus Station, Lawn ) |
Feature
|
► Simple structure |
|
► Beautiful appearance |
|
► High strength |
|
► Strong and reliable security |
|
► Thoroughly sealed and protected against rust and corrosion |
| ► Wide view and easily installation. |
Quick Detail
| Panel Height | Panel Length | Wire Diameter | Mesh Opening | Folds |
| 1.03m | 2.0m / 2.5m |
Galvanized + Powder Painted 3.85mm/4.0mm 4.85mm/5.0mm Galvanized + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm |
50 × 200mm 55 × 200mm 50 × 150mm 55 × 100mm | 2 |
| 1.23m | 2 | |||
| 1.5m | 3 | |||
| 1.53m | 3 | |||
| 1.7m | 3 | |||
| 1.73m | 3 | |||
| 1.8m | 4 | |||
| 1.93m | 4 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.4m | 4 |
The post shape could be square post, round post or peach post.
► 1. Dimension of round post:
32mm, 36mm, 38mm, 40mm, 42mm, 48mm
► 2. Dimension of peach post:
50x70mm, 70x100mm
► 3. Dimension of square post:
50x70mm, 70x100mm, 50x50mm, 60x60mm
Production Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
FAQ:
1. I'm interested in your product, is custom size available? Yes, our factory is professional in producing kinds of wire mesh, the product could be customized as your request .
2. The quantity is not that big, is that OK? Yes, you can send us message with the real quantity, we'll try our best to make this order for you. We'd like to make good relationship with more customers.
3. Can I get free samples? Yes, we'd like to provide small pieces free samples, and customers pay for the express fee.
4. Can you provide OEM service? Yes, all the products can be made as your require.
5. How can i get a competitive price quickly?The quick quotation depends on the detailed dimensions you supply.
