Product Details:
Payment & Shipping Terms:
|
| Item: | Green Plastic Wire Mesh Fence | Finish: | Plastic |
|---|---|---|---|
| Material: | Mild Steel Wire | Wire Gauge: | 4 Gauge To 11 Gauge |
| Aperture: | 2" - 7.9" | Panel Height: | Maximum 7.9' |
| Highlight: | mesh panel fence,weld wire fence |
||

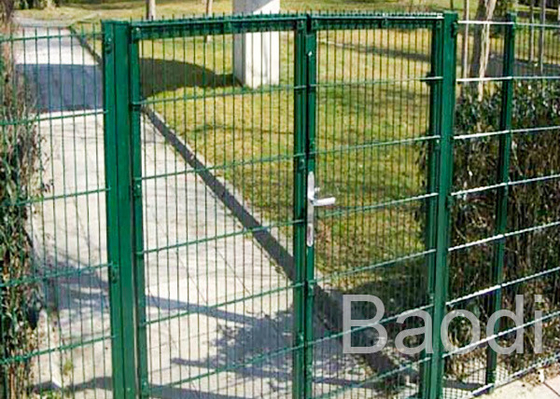

Green Plastic Wire Mesh Fence Bended Panel With Gate for Garden Fencing
|
The Green Plastic Wire Mesh Fence is made of low carbon iron wire, the fencing panels are galvanised followed by vinyl coated. |
|
The color could be green, blue, white, etc. |
|
The ' V ' shaped design increases stability to the panel including panels, mesh gates and accessories . |
|

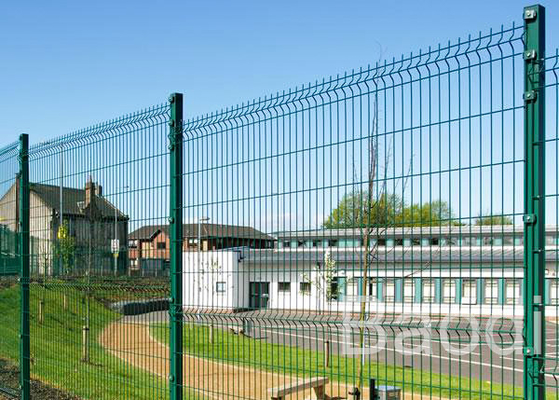

It's used as Boundary and Security Fence in airport, highway, stadium , etc. |
|
The wire mesh fence is custom made by our factory , each fence panel comes with a post and accessories. |
|
The post type could be round post, square post or peach post .
|
Feature
» simple structure
» nice appearance
» wide view and easily installation.
» It’s a semi-opaque fence due to the open weave
» It not obscure sunlight from either side of the fence
» thoroughly sealed and protected against rust and corrosion
Application
| Road and Transit ( Highway, Railway, Road, City Transit ) |
| Public grounds ( Park, Zoo, Train or Bus Station, Lawn ) |
|
Private grounds ( Courtyard, Villa )
|
| Commercial grounds ( Corporation, Hotel, Supermarket ) |
| Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm |
Quick Detail:
| Post Shape | Post Dimension |
| Square Post | 50x70mm, 70x100mm, 50x50mm, 60x60mm |
| Round Post | 32mm, 36mm, 38mm, 40mm, 42mm, 48mm |
| Peach Post | 50x70mm, 70x100mm |
| Panel Height | Panel Length | Wire Diameter | Mesh Opening | Folds |
| 1.03m | 2.0m / 2.5m |
Galvanized + Powder Painted 4.85mm/5.0mm
Galvanized + PVC Coated 4.0mm/5.0mm |
50 × 200mm 55 × 200mm 50 × 150mm 55 × 100mm |
2 |
| 1.23m | 2 | |||
| 1.5m | 3 | |||
| 1.53m | 3 | |||
| 1.7m | 3 | |||
| 1.73m | 3 | |||
| 1.8m | 4 | |||
| 1.93m | 4 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.4m |
Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
FAQ:
1. I'm interested in your product, is custom size available?
Yes, our factory is professional in producing kinds of wire mesh, the product could be customized as your request .
2. The quantity is not that big, is that OK?
Yes, you can send us message with the real quantity, we'll try our best to make this order for you. We'd like to make good relationship with more customers.
3. Can I get free samples?
Yes, we'd like to provide small pieces free samples, and customers pay for the express fee.
4. Can you provide OEM service?
Yes, all the products can be made as your require.
