Anping County Baodi Metal Mesh Co.,Ltd.
Be your good wire mesh supplier & OEM.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Item: | Square Mesh Opening HDG Welded Wire Mesh | Surface Treatment: | Hot Dipped Galvanized |
|---|---|---|---|
| Material: | Low Carbon Iron Wire | Aperture Size: | 1/4" To 4" |
| Usage: | Construction Wire Mesh | Roll Length: | 100' |
| Highlight: | welded hardware cloth,welded wire screen |
||
| ♦ Solid structure |
| ♦ Wires resist movement |
| ♦ Easy handling |
| ♦ Extensive use |
| ♦ High strength |
| ♦ Square pattern |
| ♦ Uniform mesh and smooth surface |
|
♦ Savings in time, labour and money |

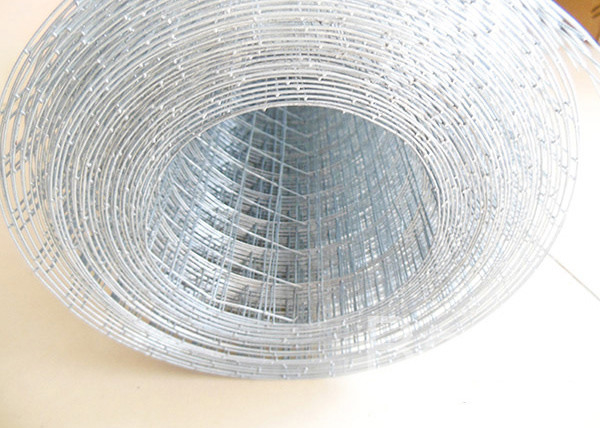

1. The HDG Welded Wire Mesh is a metal wire screen, which is made up of low carbon iron wire or stainless steel wire. It is available in various sizes and shapes.
|
2. Welded wire mesh typically has larger openings than woven wire mesh.With the wire strands welded at each intersection, welded mesh is more capable of maintaining its shape when stressed. |
|

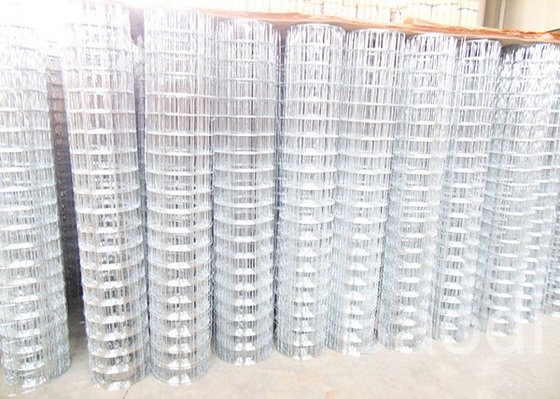

3. It's available in various roll height: 2' / 3' / 3.28' / 4' / 5' / 6'
|
|
4. It could be packed in plastic film or waterproof paper. |
NOTE: The welded wire mesh could be custom made by our factory.
|
1. Electro galvanized welded wire mesh |
|
2. Hot dipped galvanized welded wire mesh |
|
3. PVC coated welded wire mesh |
|
4. Stainless steel welded wire mesh |
♦ Welded wire mesh is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors.
♦ It is also used in mines, gardening, machine protection and other decorations.
|
Welded Wire Mesh |
||
|
Mesh Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
|
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
|
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
|
Galvanized Fencing Mesh |
||
|
Mesh Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
|
3" x 3" |
75mm x 756mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
|
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
|
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm |
15,16,17,18,19,20 |
Technical Note:
♦ Standard roll length: 30m;width: 0.5m to 1.8m
♦ Special sizes available at request
♦ Packing: in waterproof paper in rolls. Custom packing available at request.
