| Product Name: | Green Plastic Welded Wire Mesh | Finish: | PVC Coated |
|---|---|---|---|
| Raw Material: | Mild Steel Wire, Low Carbon Steel Wire | Aperture Size: | 1/4" To 4" |
| Roll Height: | 2' / 3' / 3.28' / 4' / 5' / 6' | Roll Length: | 100' |
| Highlight: | welded metal mesh,welded wire screen |
||

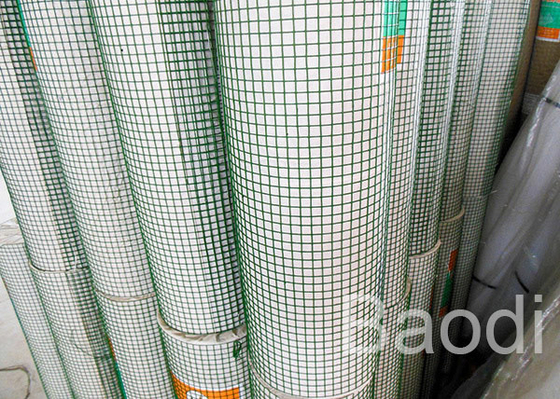

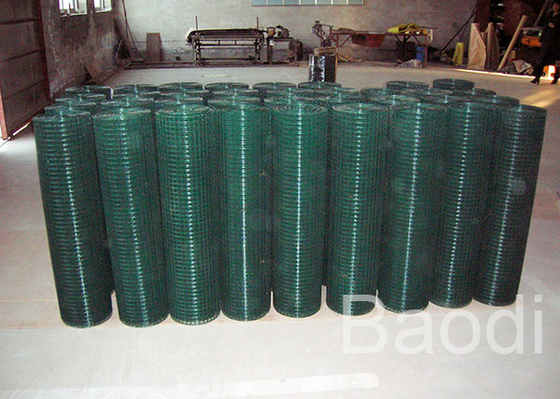

Green Plastic Welded Wire Mesh In Roll With Uniform Square Grid
Different Types of welded wire mesh
| 1. Electro galvanized welded wire mesh |
| 2. Hot dipped galvanized welded wire mesh |
| 3. PVC coated welded wire mesh |
| 4. Stainless steel welded wire mesh |
Green Plastic Welded Wire Mesh Product Description
|
1. The Welded Wire Mesh is a metal wire screen, which is made up of low carbon iron wire or stainless steel wire. It is available in various sizes and shapes. |
|
2. Welded wire mesh typically has larger openings than woven wire mesh.With the wire strands welded at each intersection, welded mesh is more capable of maintaining its shape when stressed. |
3. It's available in various roll height: 2' / 3' / 3.28' / 4' / 5' / 6'
4. It could be packed in plastic film or waterproof paper.
NOTE: The welded wire mesh could be custom made by our factory.
Characteristic of Welded Wire Mesh
♦ Solid structure
♦ Wires resist movement
♦ Easy handling
♦ Extensive use
♦ High strength
♦ Square pattern
♦ Uniform mesh and smooth surface
♦ Savings in time, labour and money
Application
Welded wire mesh is widely used for:
Specification
|
Welded Wire Mesh |
||
|
Mesh Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
|
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
|
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note:
♦ Standard roll length: 30m;width: 0.5m to 1.8m
♦ Special sizes available at request
♦ Packing: in waterproof paper in rolls. Custom packing available at request.
|
Galvanized Fencing Mesh |
||
|
Mesh Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
|
3" x 3" |
75mm x 756mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
|
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
|
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm |
15,16,17,18,19,20 |
