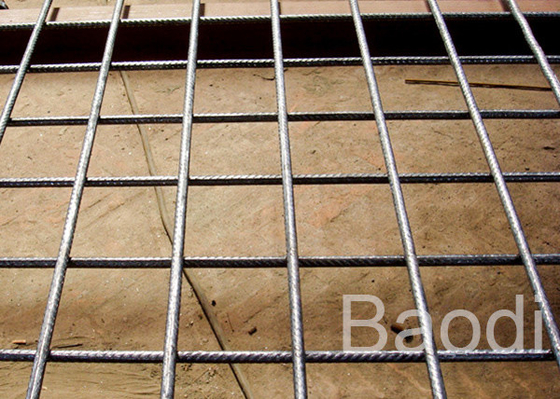

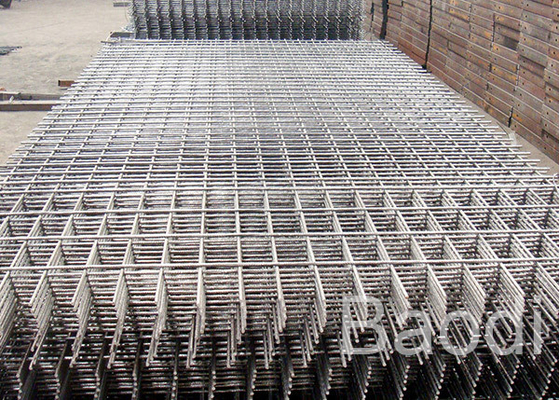

Welded Steel Wire Mesh For Concrete Reinforcement , Concrete Wire Panels For Building Floor

Name: Welded Steel Wire Mesh For Concrete Reinforcement , Concrete Wire Panels For Building Floor
Brand: Baodi
SKU: BD-RWMB
Rating: 5 (123 reviews)

Large Image : Welded Steel Wire Mesh For Concrete Reinforcement , Concrete Wire Panels For Building Floor

Product Details:

Place of Origin:	China
Brand Name:	Baodi
Model Number:	BD-RWMB

Payment & Shipping Terms:

Minimum Order Quantity:	100 sheets
Price:	negotiated
Packaging Details:	Null packing or in pallet
Delivery Time:	15-30 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sheets per month

Contact Now

Detailed Product Description

Item:	Welded Reinforcing Wire Mesh	Material:	Ribbed Bar
Mesh Size:	100-300mm	Wire Diameter:	4-12mm
Panel Width:	Maximum 2.4m	Panel Length:	Maximum 6m
Highlight:	concrete wire panels , concrete reinforcement wire mesh

Welded Reinforcing Wire Mesh Ribbed Bar Used As Construction Material

Feature

Firm Structure	Wires resist movement
Easy handling	Extensive use
High strength	Square or rectangular grids
Uniform mesh	Savings in time, labour and money

Introduction Of Welded Reinforcing Wire Mesh

We produce high quality reinforcing wire mesh in flat sheets, for construction and pre-cast industries.

Reinforcing wire mesh is an efficient, economical and viable option for concrete reinforcement.

Using reinforcing mesh will save time and money over standard rebar methods.

The rebars are welded together to form square or rectangular grids, so that the wires don't move when concrete is placed.

It's available in various rebar diameter and spacing.

The maximum sheet size is 5.8m x 2.2m.

Usage

It is widely use in airport, tunnel, bridge, highway and wharf, also in the construction of building floor, wall, roof and balcony.

Production Process

Wire Drawing → Wire Straightening & Wire Cutting → Welding→ Packing → Loading

Welding

Welded wire steel fabric is manufactured with automatic welding machines, where wires are welded together in square or rectangular grids.

Specification List

Reference No.	Wire Dia. (mm)		Pitch of wires (mm)		Cross Section Area (mm²)		Mass Per Unit Area Kg/m²
Reference No.	long	Cross	long	cross	long	cross	Mass Per Unit Area Kg/m²
A393	10	10	200	200	393	393	6.16
A252	8	8	200	200	252	252	3.95
A193	7	7	200	200	193	193	3.02
A142	6	6	200	200	142	142	2.22
A98	5	5	200	200	98	98	1.54
B1131	12	8	100	200	1131	252	10.9
B785	10	8	100	200	785	252	8.14
B503	8	8	100	200	503	252	5.93
B385	7	7	100	200	385	193	4.53
B283	6	7	100	200	283	193	3.73
B196	5	7	100	200	196	193	3.05
C785	10	6	100	400	785	70.8	6.72
C636	9	6	100	400	636	70.8	5.55
C503	8	5	100	400	503	49.0	4.34
C385	7	5	100	400	385	49	3.41
C283	6	5	100	400	283	49.0	2.61
DA1328	13	13	100	100	1328	1328	20.85
DA1131	12	12	100	100	1131	1131	17.76
DA950	11	11	100	100	950	950	14.92
DA785	10	10	100	100	785	785	12.32
DA636	9	9	100	100	636	636	9.98
DA503	8	8	100	100	503	503	7.90
DA385	7	7	100	100	385	385	6.04
DA283	6	6	100	100	283	283	4.44
