Product Details:
Payment & Shipping Terms:
|
| Item: | Custom Stainless Steel Wire Netting | Usage: | Making Wire Mesh Filter |
|---|---|---|---|
| Characteristic: | Acid Resistance, Corrosion Resistance | Mesh/inch: | 5-500 |
| Wire Diameter: | 0.025-1.2mm | Roll Length: | 15m, 20m, 30m |
| Highlight: | stainless steel woven mesh,stainless steel mesh screen |
||

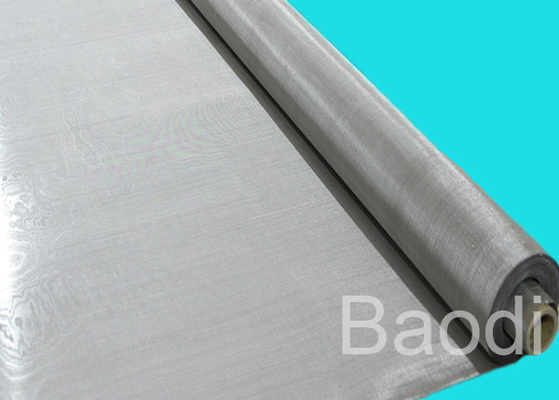

Custom Stainless Steel Wire Netting In Roll For Making Wire Mesh Filter
| Raw Material | SUS302, Ss304, Ss304L, Ss316, Ss316L | Mesh / inch | 5-500 |
| Wire Diameter | 0.025-1.2mm | Roll Length | 15m, 20, 30m |
| Roll Height | 1m, 1.2m, 1.5m | Packing | Waterproof pater, woven bag |
| NOTE | The stainless steel wire mesh could be custom made as per client's requirement by our factory. | ||
Application of Stainless Steel Wire Netting
1.Mining
2.Petroleum
3.Food
4.Metallurgy
5.Medicine
6.Chemical industry
7.Making wire mesh filter
8.Machinery manufacturing
Weaving Types:
| 1. Plain Weave |
| 2. Twill Weave |
|
3. Plain Dutch Weave
|
| 4. Dutch Twill Weave |
| Mesh/Inch | Aperture mm | Wire Gauge | SWG mm |
| 5mesh x 5mesh | 3.88 | 18 | 1.2 |
| 5mesh x 5mesh | 4.08 | 19 | 1 |
| 6mesh x 6mesh | 3.033 | 18 | 1.2 |
| 6mesh x 6mesh | 3.233 | 19 | 1 |
| 10mesh x 10mesh | 1.84 | 22 | 0.7 |
| 16mesh x 16mesh | 1.238 | 28 | 0.35 |
| 20mesh x 20mesh | 0.82 | 26 | 0.45 |
| 20mesh x 20mesh | 0.925 | 29 | 0.345 |
| 20mesh x 20mesh | 1.02 | 33 | 0.25 |
| 25mesh x 25mesh | 0.716 | 30 | 0.3 |
| 30mesh x 30mesh | 0.497 | 28 | 0.35 |
| 30mesh x 30mesh | 0.547 | 30 | 0.3 |
| 30mesh x 30mesh | 0.597 | 33 | 33 |
| 40mesh x 40mesh | 0.285 | 28 | 0.35 |
| 40mesh x 40mesh | 0.355 | 31.5 | 0.28 |
| 40mesh x 40mesh | 0.375 | 32 | 0.26 |
| 40mesh x 40mesh | 0.415 | 34 | 0.22 |
| 40mesh x 40mesh | 0.455 | 36 | 0.18 |
| 50mesh x 50mesh | 0.248 | 32 | 0.26 |
| 50mesh x 50mesh | 0.328 | 36 | 0.18 |
| 50mesh x 50mesh | 0.368 | 38 | 0.14 |
| 60mesh x 60mesh | 0.143 | 31.5 | 0.28 |
| 60mesh x 60mesh | 0.163 | 32 | 0.26 |
| 60mesh x 60mesh | 0.203 | 34 | 0.22 |
| 60mesh x 60mesh | 0.263 | 37 | 0.16 |
| 80mesh x 80mesh | 0.138 | 36 | 0.18 |
| 80mesh x 80mesh | 0.178 | 38 | 0.14 |
| 80mesh x 80mesh | 0.198 | 40 | 0.12 |
| 100mesh x 100mesh | 0.134 | 40 | 0.12 |
| 100mesh x 100mesh | 0.154 | 42 | 0.1 |
| 120mesh x 120mesh | 0.132 | 44 | 0.08 |
| 150mesh x 150mesh | 0.104 | 46 | 0.065 |
| 180mesh x 180mesh | 0.091 | 47 | 0.05 |
| 200mesh x 200mesh | 0.077 | 47 | 0.05 |
| 250mesh x 250mesh | 0.062 | 48 | 0.04 |
| 300mesh x 300mesh | 0.045 | 48 | 0.04 |
| 325mesh x 325mesh | 0.038 | 48 | 0.04 |
| 400mesh x 400mesh | 0.034 | 49 | 0.03 |
| 500mesh x 500mesh | 0.026 | 50 | 0.025 |
