| Product Name: | Electro Galvanized Vibrating Screen Mesh | Raw Material: | Carbon Steel Wire |
|---|---|---|---|
| Surface Treatment: | Electro Galvanized | Wire Diameter: | 0.4-1.6 Mm |
| Roll Height: | 0.9m-1.5m | Mesh/inch: | 2 - 18 |
| Highlight: | woven steel mesh,vibrating screen mesh |
||
Carbon Steel Electro Galvanized Vibrating Screen Mesh In Roll / Panel
Product Introduction
| Material | Low carbon steel wire, aluminum wire, stainless steel wire |
| Mesh | 2mesh - 18mesh |
| Wire Diamter | 0.4-1.6mm |
| Roll Height | 0.9m-1.5m |
| Pattern | Square or rectangular grid |
| Process | Weaving after crimped |
| Surface Treatment | Electro galvanized, hot dip galvanized or powder coated |
Crimped Wire Mesh is made by crimped mesh machine, it's available in carbon steel, stainless steel alloys and aluminum alloys.
Manufactured in a wide variety of wire diameters, crimped wire mesh is produced in a square or rectangular mesh.

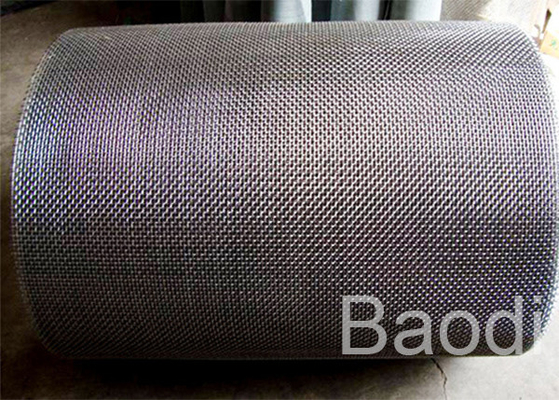

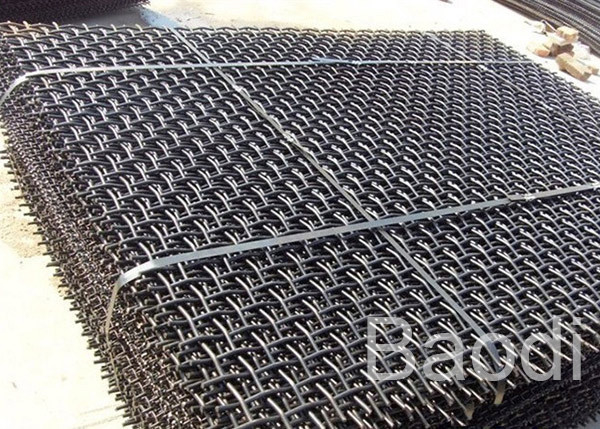

It's a kind of woven wire cloth. Crimped wire mesh is available in roll or flat panel form.
Weaving Type:
Type A: Double Crimp Screen
Type B: Single Intermediate Crimp Screen
Type C: Double Intermediate Crimp Screen
Type D: Lock Crimp Screen
Feature:
| firm structure | Accurate & uniform apertures |
| good strength | economy cost |
| acid resisting | High temperature resisting |
| alkali resisting | corrosion resisting |
Application Of Woven Wire Screens
| Used as fencing |
| Used as filter |
| As BBQ wire mesh to roast for food or meat |
| As screen in mine, coal factory, construction, etc. |
Specification List Of Woven Wire Screens
| Mesh/ Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
NOTE:
The definition of mesh is the number of openings per linear inch.
The term opening represents the clear opening between two parallel wires.
FAQ:
1. I'm interested in your crimped wire mesh, can i get free sample?
Yes, we could supply samples for free, but customer should pay the express fee.
2. Could you make a special crimped wire mesh for me?
Yes, it can be made as your require.
3. How can i get a competitive price quickly?
The quick quotation depends on the detailed dimensions you supply.
