Balcony / Wall Welded Wire Mesh Concrete Reinforcement Sizes 150 X 150 Mm

Name: Balcony / Wall Welded Wire Mesh Concrete Reinforcement Sizes 150 X 150 Mm
Brand: Baodi
SKU: BD-RWMJ
Rating: 4.8 (125 reviews)

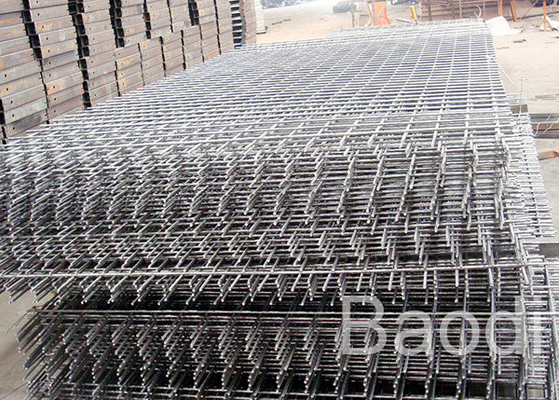

Large Image : Balcony / Wall Welded Wire Mesh Concrete Reinforcement Sizes 150 X 150 Mm

Product Details:

Place of Origin:	China
Brand Name:	Baodi
Model Number:	BD-RWMJ

Payment & Shipping Terms:

Minimum Order Quantity:	100 sheets
Price:	negotiated
Packaging Details:	Null packing or in pallet
Delivery Time:	15-30 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sheets per month

Contact Now

Detailed Product Description

Item Name:	Reinforcement Wire Mesh Sheet	Raw Material:	Reinforcing Steel Bar, Rebar, Deformed Bar
Mesh Opening:	150 X 150 Mm	Wire Diameter:	4-12mm
Pattern:	Square Grid	Maximum Panel Size:	2.4m X 6m
Highlight:	concrete reinforcement wire mesh , steel reinforcing mesh

Welded Concrete Reinforcement Wire Mesh Sheet 150 x 150 mm Mesh Size

Product Description of Reinforcement Wire Mesh Sheet

Quick Detail:

1. Raw Material: Rebar, Deformed Bar, Ribbed Bar, Thread Bar
2. Type: Welded Mesh
3. Edge: Smooth edge or rough edge
4. Wire Diameter: 4 - 12mm
5. Mesh Size: 100 - 300mm
6. Panel Width: 0.5m - 2.4m
7. Panel Length: 1 - 6m
8. Packing: on pallet or null packing

Reinforcement Wire Mesh Sheet is custom made by our factory, it is available in various sizes and shapes, the panel could be cutted to the size as your request.

Reinforcement Wire Mesh Sheet is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.

It's often patterned to form a better bond with the concrete.

Reinforcing wire mesh comes in rectangular or square steel reinforcement grids.

It consists of a series of parallel, longitudinal and transverse cold-worked and high-yield wires welded at regular intervals.

The reinforcing mesh can design by the project requirement, improve the efficiency and bond to the concrete can meet the special construct needs.

► Characteristic Of Reinforcement Wire Mesh Sheet

Firm Structure	Wires resist movement
Easy handling	Extensive use
High strength	Square or rectangular grids
Uniform mesh	Savings in time, labour and money

► Application Of Reinforcement Wire Mesh Sheet

It is widely use in:

Wall	Roof
Building floor	Balcony
Tunnel	Highway
Bridge	Wharf

► Specification List Of Reinforcement Wire Mesh Sheet

Reference No.	Main Wire		Cross Wire		Steel Area		Mass per Unit Area kg/m²
Reference No.	Diameter mm	Pitch mm	Diameter mm	Pitch mm	Main mm²	Cross mm²	Mass per Unit Area kg/m²
A63	4	200	4	200	63	63	0.99
A98	5	200	5	200	98	98	1.54
A142	6	200	6	200	142	142	2.22
A193	7	200	7	200	193	193	3.02
A252	8	200	8	200	252	252	3.95
A318	9	200	9	200	318	318	4.99
A393	10	200	10	200	393	393	6.16
A475	11	200	11	200	475	475	7.46
A565	12	200	12	200	565	565	8.88
B196	5	100	7	200	196	193	3.05
DA126	4	100	4	100	126	126	1.97
DA196	5	100	5	100	196	196	3.08
DA283	6	100	6	100	283	283	4.44
DA385	7	100	7	100	385	385	6.04
DA503	8	100	8	100	503	503	7.90
DA636	9	100	9	100	636	636	9.98
DA785	10	100	10	100	785	785	12.32
DA950	11	100	11	100	950	950	14.92
DA1131	12	100	12	100	1131	1131	17.76
