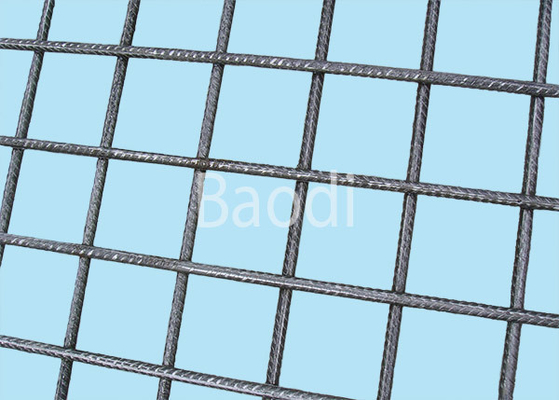

Welded Concrete Reinforcement Wire Mesh Panels For Building Floor
Introduction of Concrete Reinforcement Wire Mesh Panels
Concrete Reinforcement Mesh Panels is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.
It's often patterned to form a better bond with the concrete.
Reinforcing wire mesh comes in rectangular or square steel reinforcement grids.
It consists of a series of parallel, longitudinal and transverse cold-worked and high-yield wires welded at regular intervals.
The reinforcing mesh can design by the project requirement, improve the efficiency and bond to the concrete can meet the special construct needs.
Quick Detail:
| Raw Material | Rebar, Deformed Bar, Ribbed Bar, Thread Bar | Type | Welded Mesh |
| Edge | Smooth edge or rough edge | Wire Diameter | 4 - 12mm |
| Mesh Size | 100 - 300mm | Panel Width | 0.5m - 2.4m |
| Panel Length | 1 - 6m | Packing | On pallet or null packing |
Concrete Reinforcement Wire Mesh Panels Feature
| Firm Structure | Wires resist movement |
| Easy handling | Extensive use |
| High strength | Square or rectangular grids |
| Uniform mesh | Savings in time, labour and money |
Usage Of Concrete Reinforcement Mesh Panels
It is widely use in:
|
wall |
|
roof |
| balcony |
| airport |
| tunnel |
| bridge |
| highway |
| wharf |
| construction of building floor |
Parameter List
| Reference No. | Main Wire | Cross Wire | Steel Area | Mass per Unit Area kg/m2 | |||
| Diameter mm | Pitch mm | Diameter mm | Pitch mm | Main mm2 | Cross mm2 | ||
| A63 | 4 | 200 | 4 | 200 | 63 | 63 | 0.99 |
| A98 | 5 | 200 | 5 | 200 | 98 | 98 | 1.54 |
| A142 | 6 | 200 | 6 | 200 | 142 | 142 | 2.22 |
| A193 | 7 | 200 | 7 | 200 | 193 | 193 | 3.02 |
| A252 | 8 | 200 | 8 | 200 | 252 | 252 | 3.95 |
| A318 | 9 | 200 | 9 | 200 | 318 | 318 | 4.99 |
| A393 | 10 | 200 | 10 | 200 | 393 | 393 | 6.16 |
| A475 | 11 | 200 | 11 | 200 | 475 | 475 | 7.46 |
| A565 | 12 | 200 | 12 | 200 | 565 | 565 | 8.88 |
| B196 | 5 | 100 | 7 | 200 | 196 | 193 | 3.05 |
| B283 | 6 | 100 | 7 | 200 | 283 | 193 | 3.73 |
| B385 | 7 | 100 | 7 | 200 | 385 | 193 | 4.53 |
| B503 | 8 | 100 | 8 | 200 | 503 | 252 | 5.93 |
| B636 | 9 | 100 | 8 | 200 | 636 | 252 | 6.97 |
| B785 | 10 | 100 | 8 | 200 | 785 | 252 | 8.14 |
| B950 | 11 | 100 | 8 | 200 | 950 | 252 | 9.44 |
| B1131 | 12 | 100 | 8 | 200 | 1131 | 252 | 10.86 |
| DA126 | 4 | 100 | 4 | 100 | 126 | 126 | 1.97 |
| DA196 | 5 | 100 | 5 | 100 | 196 | 196 | 3.08 |
| DA283 | 6 | 100 | 6 | 100 | 283 | 283 | 4.44 |
| DA385 | 7 | 100 | 7 | 100 | 385 | 385 | 6.04 |
| DA503 | 8 | 100 | 8 | 100 | 503 | 503 | 7.90 |
| DA636 | 9 | 100 | 9 | 100 | 636 | 636 | 9.98 |
| DA785 | 10 | 100 | 10 | 100 | 785 | 785 | 12.32 |
| DA950 | 11 | 100 | 11 | 100 | 950 | 950 | 14.92 |
| DA1131 | 12 | 100 | 12 | 100 | 1131 | 1131 | 17.76 |
Packing: on pallet or null packing
Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding→ Packing → Loading
Welding:
Welded wire steel fabric is manufactured with automatic welding machines, where wires are welded together in square or rectangular grids.
