Product Details:
Payment & Shipping Terms:
|
| Model: | Round Hole Perforated Plate | Material: | Stainless Steel |
|---|---|---|---|
| Type: | Punched Mesh | Hole Diameter: | 0.8mm-25mm |
| Maximum Sheet Width: | 1.5m | Maximum Sheet Length: | 3m |
| Highlight: | perforated metal screen,perforated stainless sheet |
||

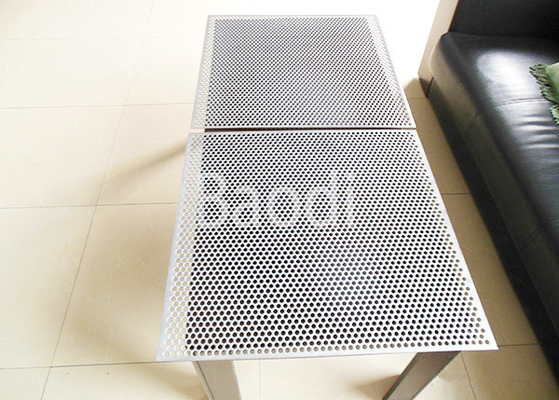

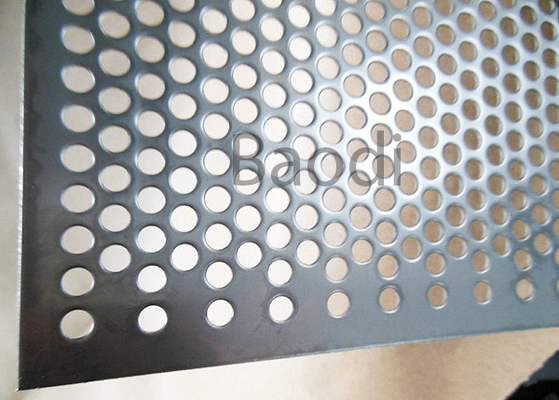

Stainless Steel Round Hole Perforated Plate 1m x 2m As Filter Screen
1.Material: low carbon steel,stainless steel,aluminum
2.Hole Pattern: Round hole,square hole, slotted hole
3.Hole size: 0.8-25mm
4.Sheet Width: Maximum width 1.5m
5.Sheet Length: Maximum length 3m
6.Sheet Thickness: 0.5mm-3.5mm
7.Packing: Plastic film inside,pallet outside
Different Hole Shapes:
Application
Perforated Metal Sheet has been utilized across a variety of industries:
1.Mining
2.Refining
3.Healthcare
4.Security
5.Pharmaceutical
6.Environmental
7.Acoustic
Chemical — Filters, centrifuges, drying machine baskets, battery separator plates, water screens, gas purifiers, liquid gas burning tubes, mine cages, coal washing, etc.
Food and beverage — Beehive construction, grain dryers, wine vats, fish farming, silo ventilation, sorting machines, fruit and vegetable juice presses, cheese molds, baking trays, coffee screens, etc.
Architectural — Infill panels, sunshade, cladding, column covers, metal signage, site amenities, fencing screens, etc.
Automotive — Air filters, oil filters, silencer tubes, radiator grilles, running boards, flooring, motorcycle silencers, ventilation grids, tractor engine ventilation, etc.
Construction — Ceiling noise protection, acoustic panels, stair treads, pipe guards, ventilation grilles, sun protection slats, facades, sign boards, etc.
Specification List
| Sheet Material | Thickness of metal(mm ) | Hole Dia.(mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Weight (kg/m2) |
| Carbon Steel Plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Factors for quotation
| Material | Sheet Thickness |
| Hole Shape | Hole Arrangement |
| Open Area / Hole Pitch | Margin Leaving |
| Sheet Length | Sheet Width |
Why Choose Us?
1. Quality is our culture, always supply high qulity products with reasonable price.
2. Customer's request is our objective.
3. We're professional in producing wire mesh for many years, and have many experiences to do it.
4. You could visit our factory if convenient.
