Anping County Baodi Metal Mesh Co.,Ltd.
Be your good wire mesh supplier & OEM.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Product: | Punched Metal Sheets | Raw Material: | Low Carbon Iron, Mild Steel, Stainless Steel, Aluminum |
|---|---|---|---|
| Hole Shape: | Round Hole, Square Hole, Slotted Hole | Hole Diameter: | 0.8mm-25mm |
| Maximum Sheet Width: | 1m | Maximum Sheet Length: | 2m |
| Highlight: | perforated metal screen,perforated stainless sheet |
||

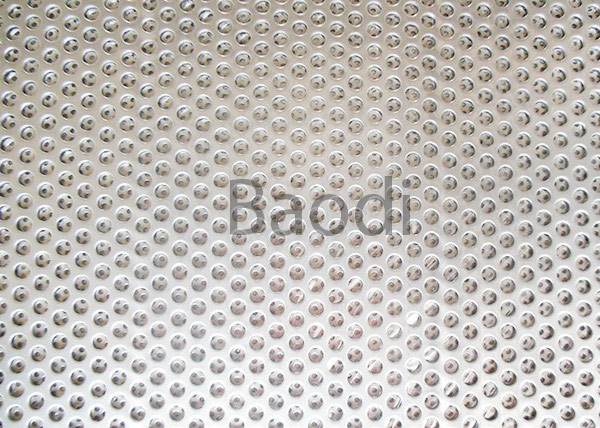

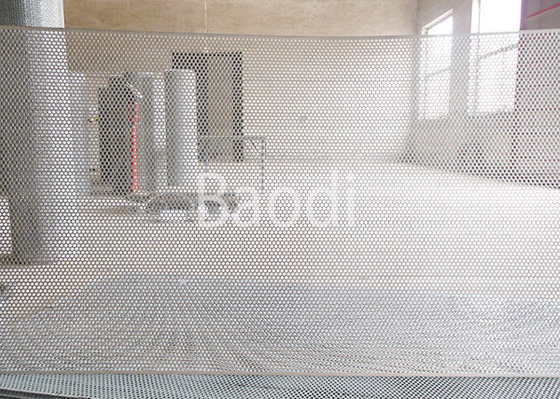

Stainless Steel Punched Metal Sheets For Architecture & Building
| Sheet Materials | Hole Shapes | ||
| Stainless Steel | Cold Rolled Steel | Round hole | Square hole |
| Carbon Steel | Aluminum | Hexagonal hole | Slotted hole / Oblong hole |
Application
♦ Mining
♦ Refining
♦ Healthcare
♦ Security
♦ Pharmaceutical
♦ Environmental
♦ Acoustic
♦ Chemical — Filters, centrifuges, drying machine baskets, battery separator plates, water screens, gas purifiers, liquid gas burning tubes, mine cages, coal washing, etc.
♦ Food and beverage — Beehive construction, grain dryers, wine vats, fish farming, silo ventilation, sorting machines, fruit and vegetable juice presses, cheese molds, baking trays, coffee screens, etc.
♦ Architectural — Infill panels, sunshade, cladding, column covers, metal signage, site amenities, fencing screens, etc.
♦ Automotive — Air filters, oil filters, silencer tubes, radiator grilles, running boards, flooring, motorcycle ♦ silencers, ventilation grids, tractor engine ventilation, etc.
♦ Construction — Ceiling noise protection, acoustic panels, stair treads, pipe guards, ventilation grilles, sun protection slats, facades, sign boards, etc.
Specification List
| Plate material | Thickness of metal(mm ) | Hole Dia.(mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Weight (kg/m2) |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Factors for quotation
| Material | Sheet Thickness |
| Hole Shape | Hole Arrangement |
| Open Area / Hole Pitch | Margin Leaving |
| Sheet Length | Sheet Width |
Packing: Plastic film inside, then packed in pallet.
Why Choose Us?
1. Quality is our culture, always supply high qulity products with reasonable price.
2. Customer's request is our objective.
3. We're professional in producing wire mesh for many years, and have many experiences to do it.
4. You could visit our factory if convenient.
Contact Person: Mr. Daniel Wang
Tel: +86-18831891988
Fax: 86-318-7565808
