Product Details:
Payment & Shipping Terms:
|
| Model: | Curved Welded Mesh Fence | Type: | Welded Mesh |
|---|---|---|---|
| Surface Treatment: | Powder Spraing After Galvanized | Mesh Opening: | 50-200mm |
| Panel Height: | Maximum 2.4m | Panel Length: | Maximum 3m |
| Highlight: | wire net fencing,mesh panel fence |
||
| 1. Material: :ow carbon iron wire | 2. Surface: Galvanized or PVC coated |
| 3. Wire Diameter: 4-6mm | 4. Mesh Opening: 50-200mm |
| 5. Length:1.5-3m | 6. Height:0.4-2.5m |
| 7. Packing: Packed in pallet or wooden crate | 8. Feature: Beautiful appearance, wide view and easily installation. |

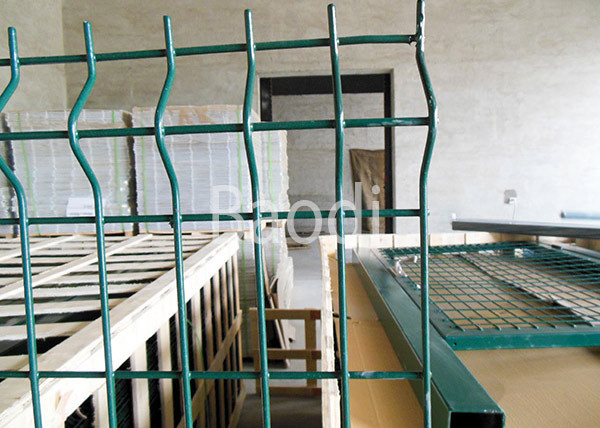

The Curved Welded Mesh Fence is made of low carbon iron wire, the fencing panels are galvanised followed by powder coating.
The color could be green , blue , white , etc.
The ' V ' shaped design increases stability to the panel including panels , mesh gates and accessories.

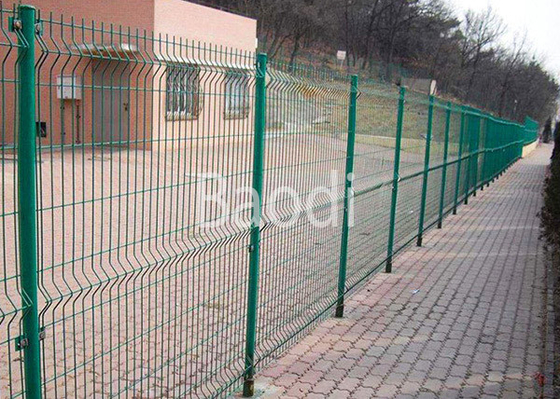

It's used as Boundary and Security Fence in airport , highway , stadium , etc.
The Curved Welded Mesh Fence is custom made by our factory, each fence panel comes with a post and accessories.
The post type could be round post, square post or peach post.
Application Of Curved Welded Mesh Fence
| Mesh Opening | 50x100, 50x150, 50x200,55x100,55x200 | mm | |
| Panel Width X Height |
2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, 2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43 |
m(L x H) | |
| Square Post |
50x70, 70x100, 50x50, 60x60 |
mm | |
| Round Post Diameter |
32, 36, 38, 40, 42, 48 |
mm | |
| Wire Diameter | 3-6mm, or as customer’s request | mm | |
| Surface Treatment | PVC coated & Powder spraying | ||
| Color | Green, blue, black, white, yellow, etc. | ||
| Post shape | Round, peach post, square, T-type, Y-type post | ||
Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
Straightening & Cutting
The cold rolled wire rods in the coil form is passed through pre set die and cartridge units (special sets for different diameter wire rods) present in the straightening and cutting machine, where the wire rods are first straightened and then cut to set length (precision up to 2mm) automatically.
Welding
The wires are welded by electric resistance in an automated state of the art machine which controls welding parameters precisely.
Bending
The bending machine available is used to bend the mesh panels to form the V shape design.
